Waterproof nylon cable joint

Key words：

Waterproof nylon cable joint

Category：

Hoses And Fittings

Support hotline：

+86 15531769067

+86 17736962552

Inquiry
Related Products

Product description

Material; nylon

Material of the airproof ring: NBR

Protection class: IP- 66- 10pa. (tightening part with 0- -shaped ring)

Surrounding temperature:

static state: -40C- + 1009C and+ 1209C for a short time

dynamic state: -20°C- +80Cand+ 100°C for a short time

Color: black, gray

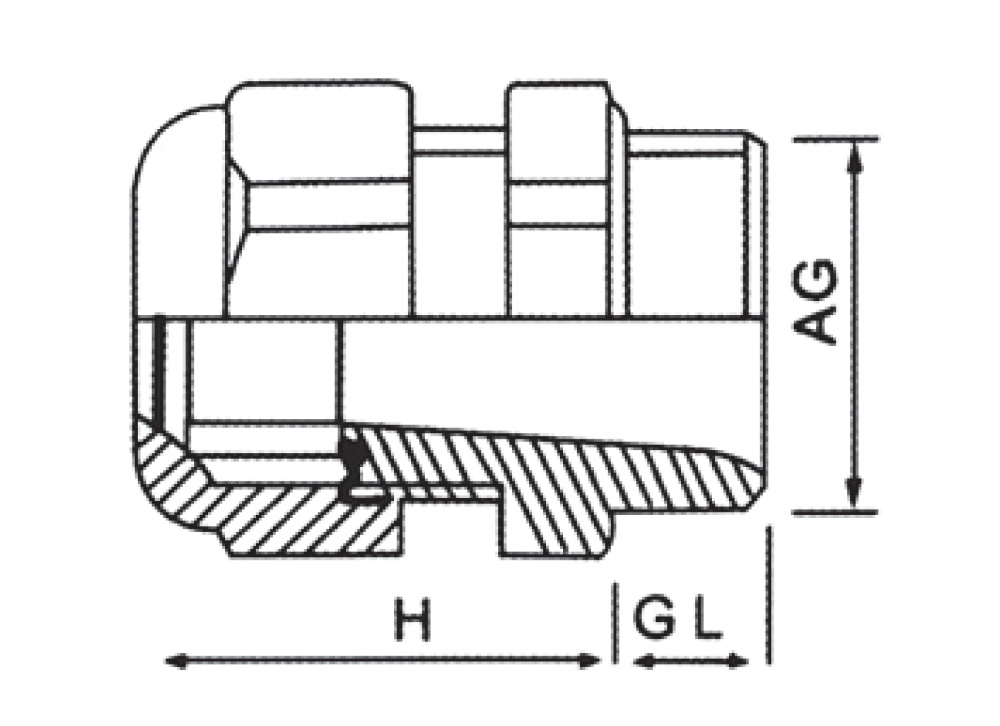

Technical parameters-SSQ-PG

AG   GL H   packet
PG mm mm mm mm
PG7 3-6.5 8 20 15 100
PG9 4-8 8 22 19 100
PG11 5-10 8 24 22 100
PG13.5 6-12 9 27 24 100
PG16 10-14 10 28 17 50
PG21 13-18 11 30 33 25
PG29 18-25 11 38 42 20
PG36 22-32 13 45 53 10
PG42 32-38 13 47 60 5
PG48 37-44 14 47 65 5
PG11-L 5-10 12 24 22 100
PG13.5-L 6-12 12.5 27 24 100

Technical parameters-SSQ-M

AG   GL H   packet
M mm mm mm mm 100
12×1.5 3-6.5 8 20 15 100
16×1.5 4-8 8 22 19 100
18×1.5 5-10 8 24 22 100
20×1.5 6-12 9 23 24 100
22×1.5 10-14 10 28 17 50
24×1.5 10-14 10 28 17 50
25×1.5 18-18 10 30 33 25
27×2 13-18 11 30 33 25
30×2 13-18 11 30 33 25
32×1.5 18-25 11 38 42 20
33×2 18-25 11 38 42 20
36×2 18-25 11 38 42 10
40×1.5 22-32 12 45 53 10
42×2 22-32 13 45 53 5
45×2 22-32 13 45 53 5
48×2 22-32 13 45 53 5
50×1.5 32-38 13 47 60 5
56×2 32-38 13 47 60 5
53×1.5 37-44 14 47 65 5
64×2 37-44 14 47 65 5
63×1.5 37-44 14 47 65 5
