Product description

Material: nylon

temperature range: - -30C-1 00°C

Color: black, gray

Advantage: insert only, instant installed firmly without any tools and save 30% working time.

Protection class: IP66.

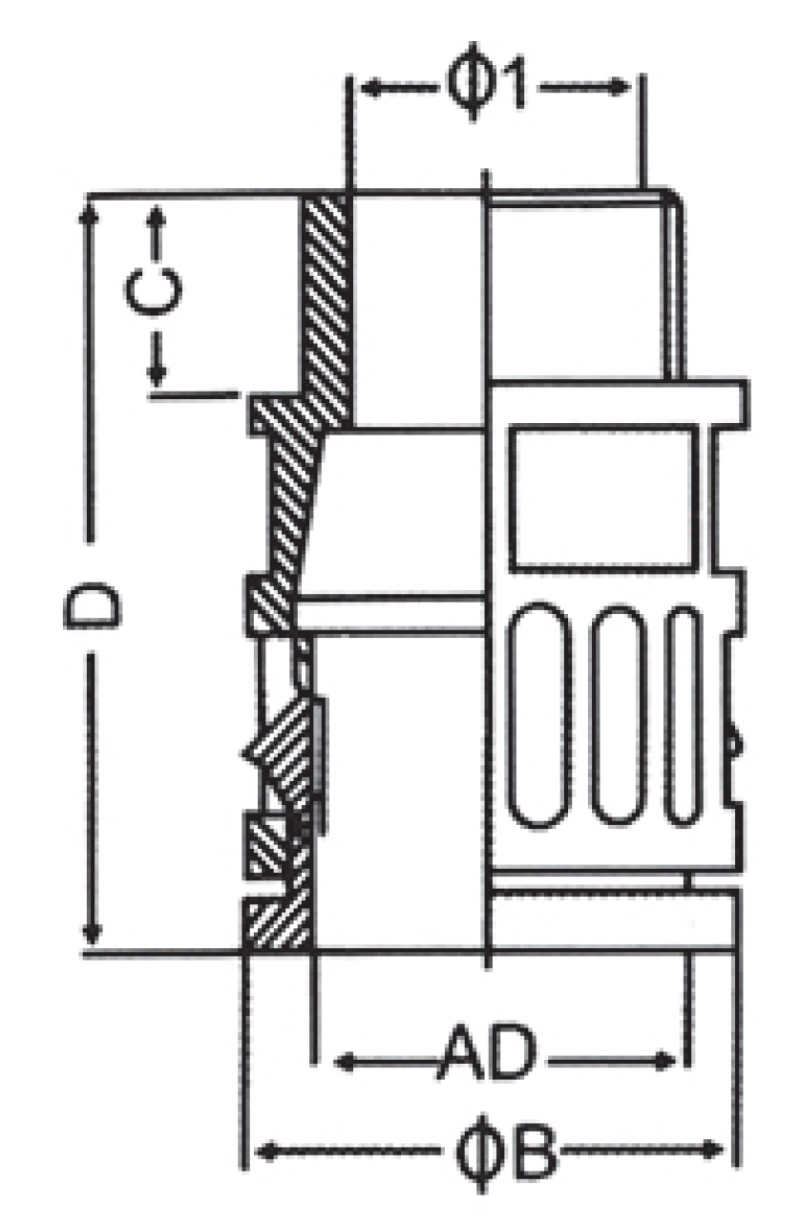

Technical parameters-SQG-PG

AD PG ΦI ΦB C D Packet
10 7 7 17.0  10 32.5 100
13 7 7 20 10 32.5 100
13 9 7 20 10 32.5 100
13 11 7 20 10 32.5 100
13 13.5 7 20 10 32.5 100
15.8 11 12.5 23.0  10 37.0  100
15.8 13.5 12.5 23.0  10 37.0  100
18.5 13.5 13.5 25.5 11 40.0  50
21.2 13.5 15.4 29.5 12 43.5 50
21.2 16 15.4 29.5 12 43.5 50
28.5 21 23.5 37.0  12 46.0  25
34.5 29 20.0  44.0  12 48.5 20
42.5 36 36.5 51.5 11.5 50.5 10
54.5 48 48.0  65.5 14.5 54.0  5

Technical parameters-SQG-N

AD n ΦI ΦB C D Casting
15.8 1/2 12.5 23 12 39 100
21.2 1/2 17 29.5 12 43.5 50
28.5 3/4 21.0  37.0  14.0  47.5 25
34.5 1 27.5 44.0  16.0  52.0  20

Technical parameters-SQG-M

AD M ΦI ΦB C D Packet
10 10×1.0 7 17.0  10 32.5 100
10 12×1.5 7 17.0  10 32.5 100
10 16×1.5 7 17.0  10 32.5 100
13 12×1.5 7 20 10 32.5 100
13 16×1.5 7 20 10 32.5 100
13 18×1.5 7 20 10 32.5 100
15.8 16×1.5 12.5 23.0  10 37.0  100
15.8 18×1.5 12.5 23.0  10 37.0  100
15.8 20×1.5 12.5 23.0  10 37.0  100
18.5 18×1.5 13.5 25.5 11 40.0  50
18.5 20×1.5 13.5 25.5 11 40.0  50
21.2 20×1.5 15.4 29.5 12 43.5 50
21.2 24×1.5 15.4 29.5 12 43.5 50
28.5 25×1.5 23.5 37.0  12 46.0  25
28.5 27×1.5 23.5 37.0  12 46.0  25
28.5 30×2 23.5 37.0  12 46.0  25
28.5 32×1.5 23.5 37.0  12 46.0  25
34.5 32×1.5 30.0  44.0  12 48.0  20
34.5 33×1.5 30.0  44.0  12 48.0  20
34.5 36×2 30.0  44.0  12 48.0  20
42.5 40×1.5 36.5 51.5 11.5 50.0  10
42.5 42×1.5 36.5 51.5 11.5 50.0  10
42.5 48×2 36.5 51.5 11.5 50.0  10
54.5 63×1.5 48.0  65.5 11.5 54.0  5
54.5 64×2 48.0  65.5 11.5 54.0  5
