Chip ConVeyor(Scraped Type)

Key words：

Chip ConVeyor(Scraped Type)

Category：

Horn / Chip Conveyor

Support hotline：

+86 15531769067

+86 17736962552

Inquiry
Related Products

Product description

The best choice on using various kinds of chips remover

Compact with high efficiency; It' s the most proper model on removingthe ships of brass, aluminum or casting, and so on.

Plural scraped width offers you the optimal application for wide range and the effectiveness.

Afirm scraped assembly with high strength. precise coordination andstable & silent motion.

With a limited torque force, It can effectively reduce the damage to theminimum level that caused by improper operation.

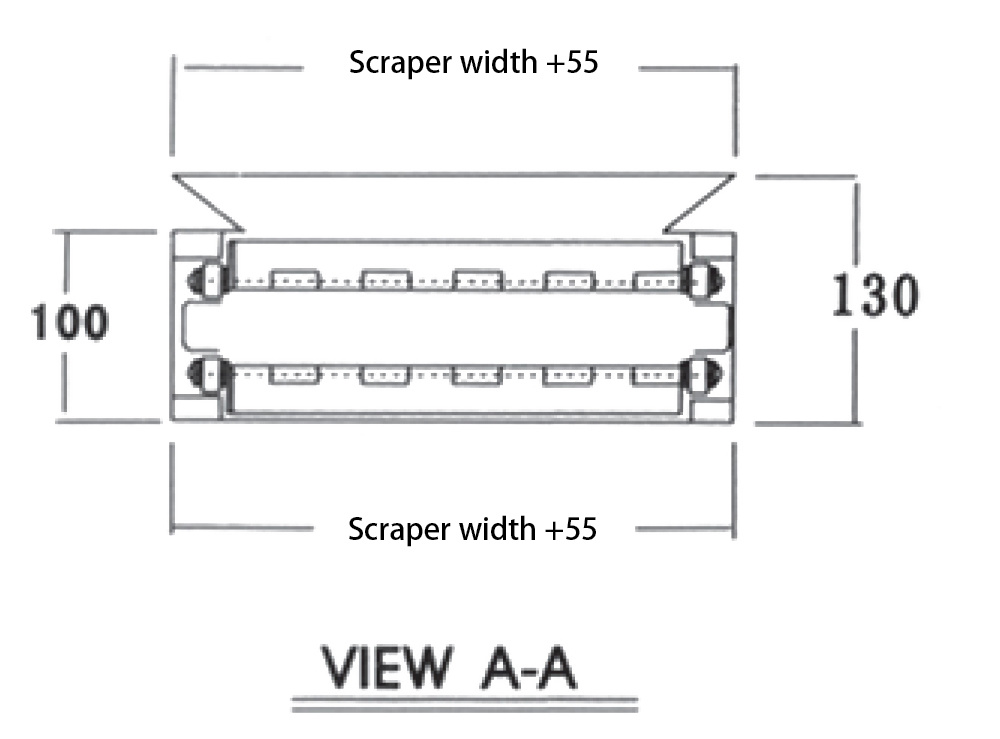

Type and Specification

Specification Option
Reduce Speed Motor 1/4HP(0.2kw)1/165 220/380v 1.CE Specification 1.Simple CE device of exit
Pitch of Chain R2050 P=31.75mm 2.Full Cover CE device of exit
Scraped Width 175,150-600(there is onr kind of specification every 50mm) 2.Manual Control Device 1.Standard emergent stop
2.CE spev standard emergent stop
Scraped Device One piece for every six pieces of chain spacing 3.Various far teminal control boxes
Scraped Speed 1.2-1.4M/min(50/60HZ) 4.Various romte controller cable lines
Safety Device HTL-350-2 5.Torque limit device
Angle of Conveyor 60° Revent chips roll up device
