S77 Series Three L ayers Machine Anti-Vibration Mounts
Key words：
Category：
Horn / Chip Conveyor
Product description
Product features
It isolators the vibration and shock of the machine from the floor. It can also reduc the influences from the other machines. Machines are stationary on the follr without anchors. Threrfore the instal- lation coat and time can be greatly saved. Machines level can be arge range adjusted. NBR rubber can resistoil and refrigerant.
Scope of application
Not have anchor hole of the machine tools.
Technical parameters

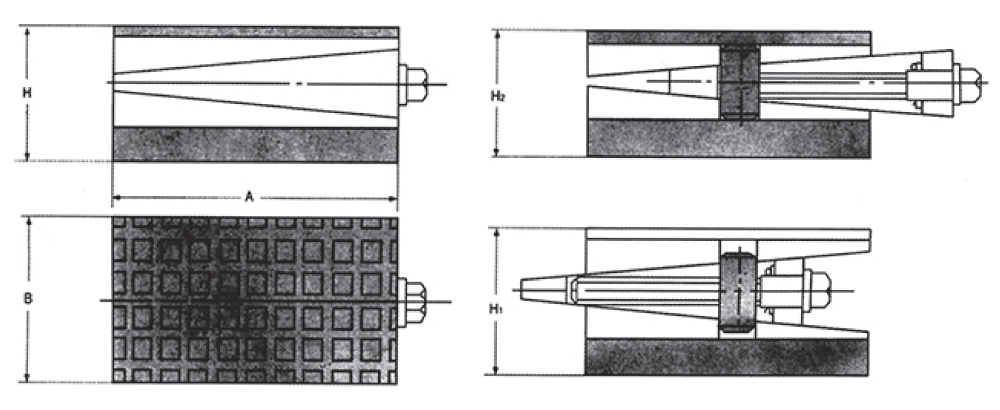

| Part No. | Dimensions | Screw(mm) | Adjust height | Static load per mount | ||
| A-B-H | A | B | H | M | h1-h2 | kg |
| 135×70×60 | 135 | 70 | 60 | 14 | 6 | 400 |
| 150×75×70 | 150 | 75 | 70 | 14 | 8 | 600 |
| 200×100×80 | 200 | 100 | 80 | 16 | 10 | 1200 |
| 240×120×100 | 240 | 120 | 100 | 18 | 14 | 3000 |
| 250×120×110 | 250 | 120 | 110 | 18 | 16 | 3800 |
| 300×140×110 | 300 | 140 | 110 | 20 | 16 | 4000 |
| 400×250×170 | 400 | 250 | 170 | 30 | 16 | 5000 |
