JR--2 type rectangle metailic hoses

Key words：

JR--2 type rectangle metailic hoses

Category：

Drag Chain

Support hotline：

+86 15531769067

+86 17736962552

Inquiry
Related Products

Product description

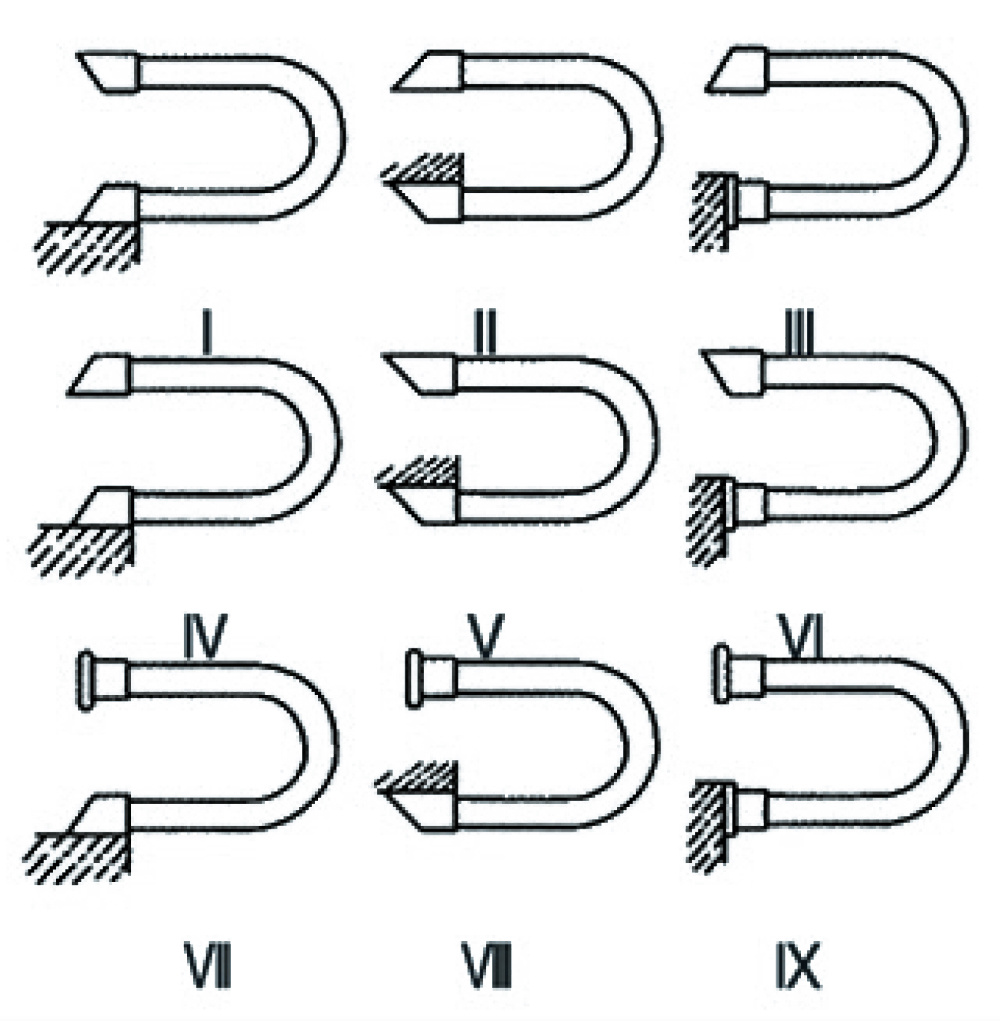

Hose assembly figure

Construction and appliations

The rectangle metalic hosed hac a totally metalic construction. The prod-uct is according to the standard JB/GQ58285 and suitable for all types of metal cutting machine tools andslicing machines. Protect working person-nel, electric circuits, water supplying piping systems and gas loops from damging or injured.

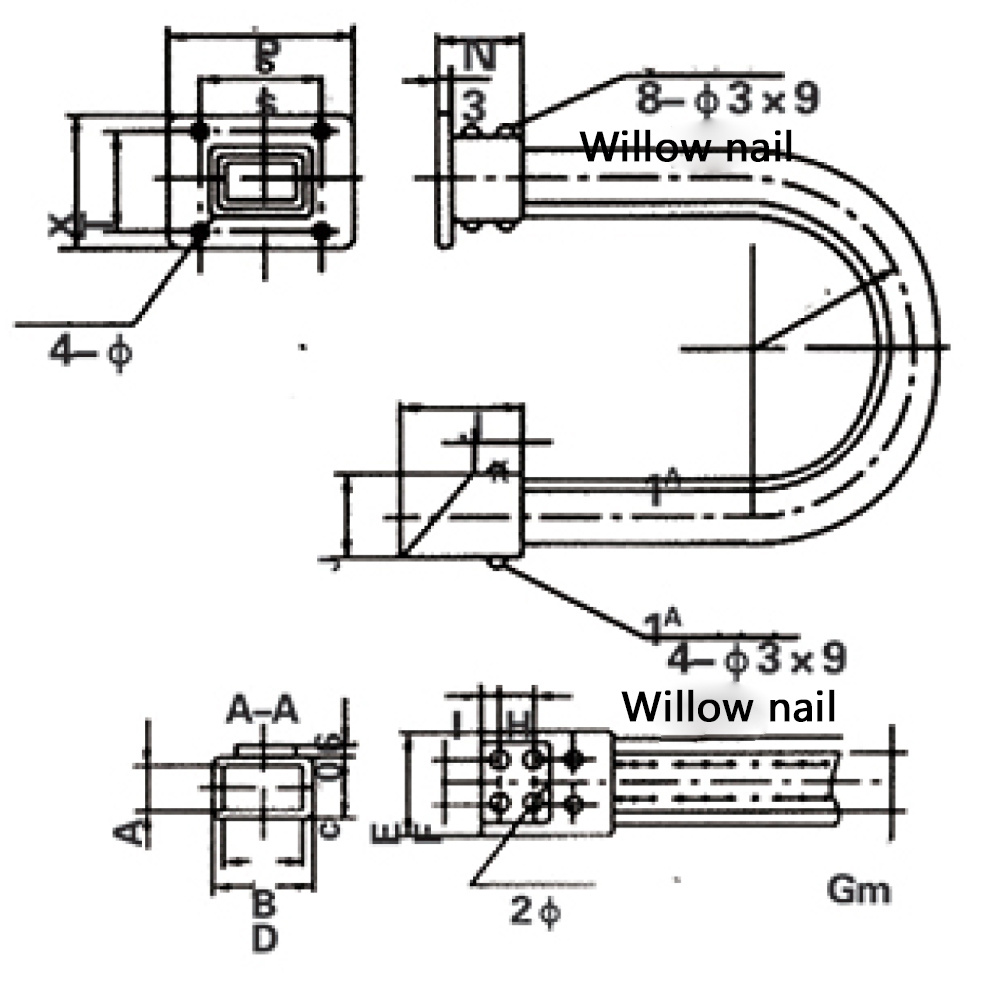

Connector dimension figure

Note: 1.When rotating horizontally. enough drag plate with enough length underneath should be provided.

2. When laid horizontally, a length that exceeds the range given in the table is allowed. but a rlling backing point is recommended to add at an appropriate position to avoid tube bending.

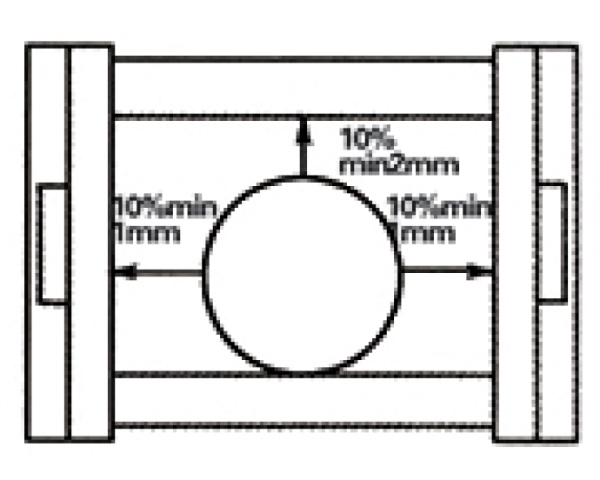

Positions of cable and gas pipes within the rectangle hose

Model selection

Give a clear indication of the specifications and medel numbers as given below;

AxBxL—assembly type; L—hose length, including the assembly of the commectors，please see the hose assembly figrue for specifics: I~IX

Example: 25x50x1200-I

Connector's dimensions and specifications

Inside diameter Outside diameter C D E F G H I L J K N P S X T ∅ R Axial pulling force Weight(kg/m)
22×32 27.5×36.7 20 35 38 18 25 22 10 23 45 20 40 75 60 55 38 5.5 60 35 1.3
25×50 31.5×54.5 30 55 58 30 35 25 10 33 60 25 50 90 75 60 45 5.5 90 40 1.75
35×60 40.1×64.4 40 65 69 40 45 25 10 44 70 30 50 100 80 70 52 5.5 100 50 2.1
38×73 43.7×77.8 43 78 82 50 55 35 10 47 75 35 50 105 85 82 62 6.5 110 60 2.36
40×80 45.4×84.7 45 85 89 50 65 50 15 49 90 40 55 120 100 90 68 8.5 120 70 2.5
52×102 57.5×107.8 57 107 113 65 80 50 15 63 105 45 60 140 120 100 80 8.5 140 75 2.85
60×120 67.5×127.7 68 128 131 90 90 80 20 71 135 45 70 170 146 110 84 9 180 80 3.15
60×130 65.1×134.4 68 138 141 95 100 90 20 71 140 50 75 180 150 120 90 9 180 80 3.25
72×162 78.4×168.2 86 180 184 120 120 100 20 82 150 60 80 210 180 130 100 9 210 80 4.5
