Product description

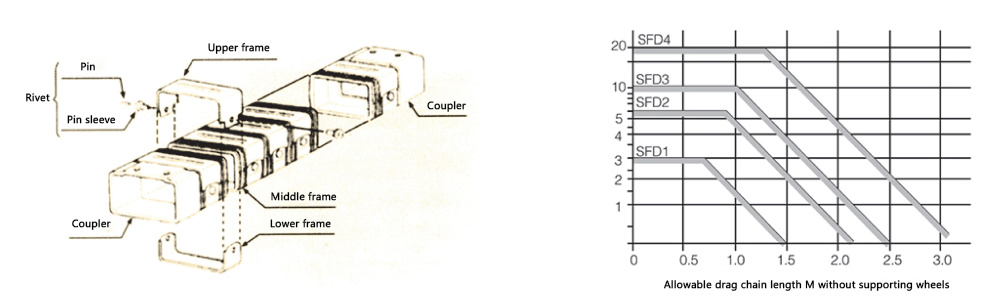

Constructinon and Applications

It consists of a outer sleeve being chromium plated, stain-less steel and plasstics plastics pieces and eng ineering plastic reenforced nylon fibre,The stainless steel bushing isp olished. It has some engineering plasis items. It is featurized by rational construction, high sturngth, non- -deformation and has nice- Hookingappearance. Easy installation. It is suitable for various types of electricals of the machine tools, protection for hydraulic pneumatic pipelines anddecoration of main mavhineries and provide the operating personnel with safe working conditions and better the competi- -tiveness of machine tools and machineries in the intermational market.

Type and Specification

Type 1# 2# 3# 4# 5# 6# 7#
Spec 25×45 38×73 45×90 52×102 60×120 60×150 72×162
Appearance 39×62 53×91 61×108 70×122 81×144 81×184 93×186
Bending radius 60 100 120 140 160 165 185
Length for non-supporting 1.5 2 2.2 2.5 2.7 2.9 3.0
Load weight 3 4 5 8 10 14 20

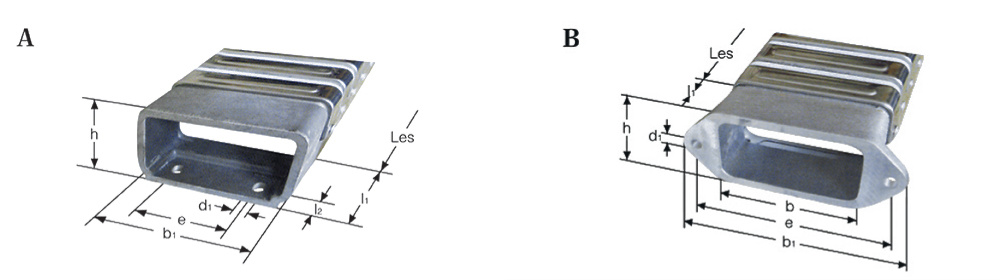

Connectors parameters A Type

Spec/Parameters h b e d1 l1 l2
25×45 39 62 15 Φ6.5 30 8
38×73 53 91 35 Φ6.5 30 10
45×90 61 108 40 Φ6.5 35 10
52×102 70 122 45 Φ8.5 40 10
60×120 81 144 70 Φ8.5 40 10
60×150 81 184 80 Φ8.5 40 12
72×162 93 186 100 Φ8.5 45 12

Connectors parameters B Type

Spec/Parameters h b e d1 l1 l2
25×45 39 62 75 Φ6.5 30 90
38×73 53 91 102 Φ8.5 30 120
45×90 61 108 128 Φ8.5 35 137
52×102 70 122 135 Φ8.5 40 160
60×120 81 144 170 Φ8.5 40 167
60×150 81 184 210 Φ8.5 40 197
72×162 93 186 225 Φ8.5 45 226

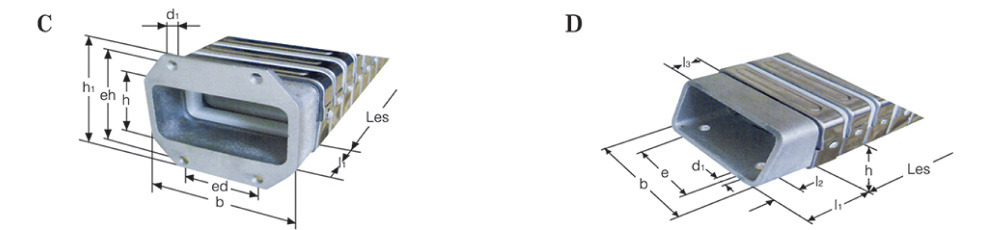

Connectors parameters C Type

Spec/Parameters h b e d1 l1 l1 l2
25×45 36 60 20 Φ6.5 30 60 80
38×73 50 85 35 Φ6.5 35 70 95
45×90 114 103 52 Φ8.5 40 80 102
52×102 65 114 55 Φ8.5 40 88 115
60×120 73 132 68 Φ8.5 42 103 123
60×150 73 163 83 Φ8.5 44 105 123
72×162 85 175 95 Φ8.5 45 115 135

Connectors parameters D Type

Spec/Parameters h b e d1 l1 l2
25×45 39 62 22 Φ6.5 60 10
38×73 53 91 45 Φ6.5 65 10
45×90 61 108 55 Φ6.5 65 12
52×102 70 122 70 Φ8.5 70 13
60×120 81 144 85 Φ8.5 70 15
60×150 81 184 95 Φ8.5 70 15
72×162 93 186 115 Φ8.5 75 15

Related Products

Flexible Accordion Type Guide Shield

Flexible Accordion Type Guide Shield

1.The folding material of the shield uses PVC or other materials according to the working conditions.
2.Under per folding support by PVC.
3.Gliding slice can help to avoid noises by high speed.
4.High frequency welding
5.Mounting panel for fixation
Organ-shaped Shield

Organ-shaped Shield

1.The folding material of the shield uses PVC or other materials according to the working conditions.
2.Under per folding support by PVC.
3.Gliding slice can help to avoid noises by high speed.
4.High frequency welding
5.Mounting panel for fixation
Beeline guiding track shield

Beeline guiding track shield

This guard shield is used in the protection of each kind of straight line guide rail, may lengthen the guide rail service life. The die nt may un der the basis the chart in dig- enously design, may tell us the straight line guide rail model to replace the design by our company.
Square shield

Square shield

1. Dustproof, waterproof, greaseproof emulsion-proof and chemical-proof.
2. With external nylon material and internal hard PVC as a support, the working temperature can be as high as 110°C and as low as -40°C
3. Width and length of the product is according to the customer's need. The range of the product is 120m/min.
