TL series steel cable drag chains
Key words：
Category：
Drag Chain
Product description

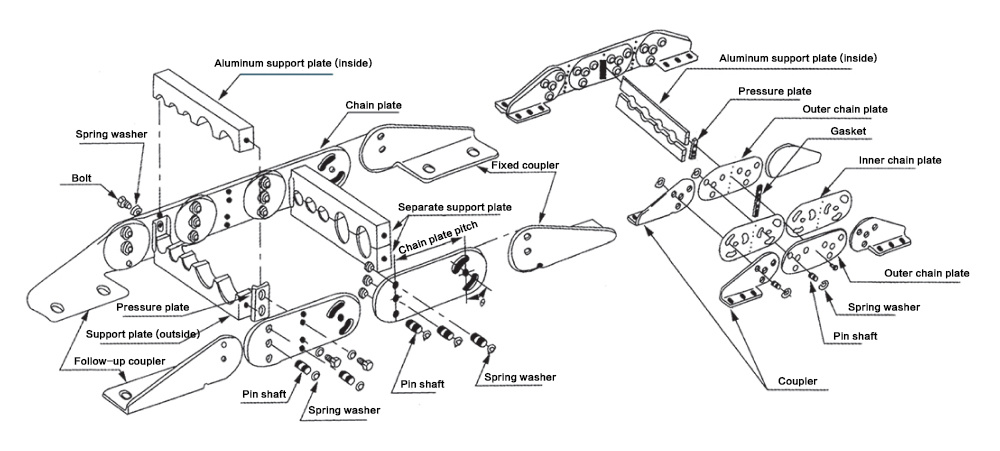

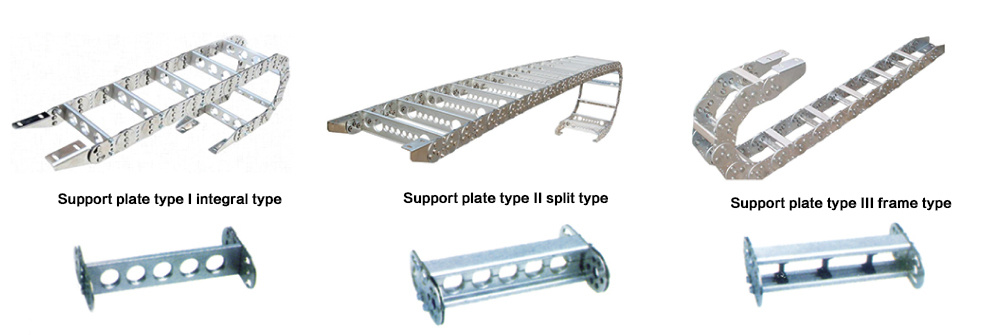

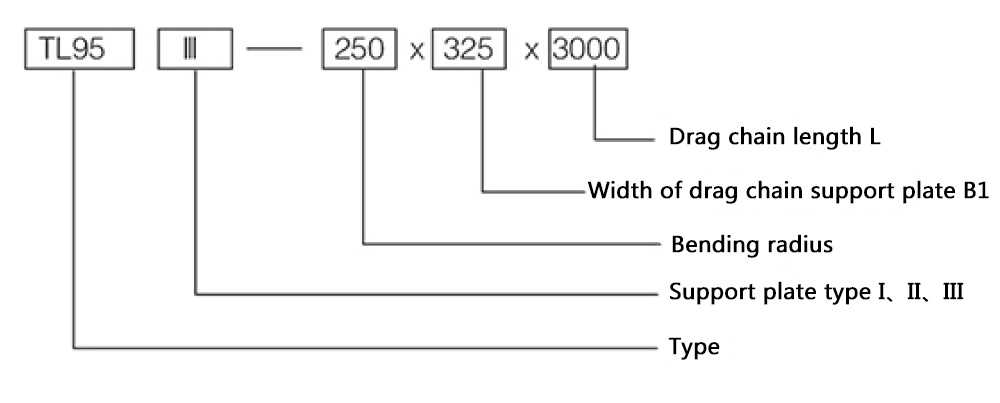

TL III series steel drag chains

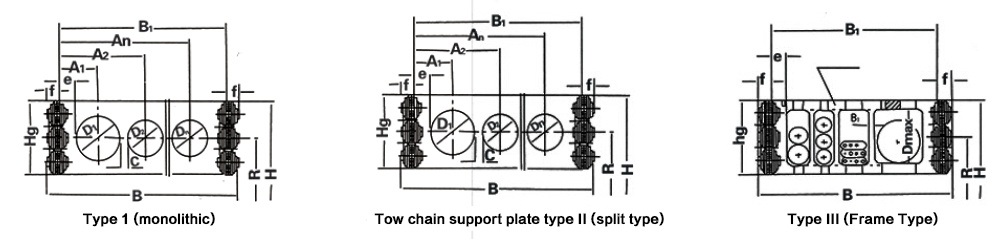

Parameters: Table 1
| Type | TL65 | TL95 | TL125 | TL180 | ||||||
| Support board type | I | II | III | I | II | III | I | II | III | II |
| e | 10 | 12 | 12 | 15 | ||||||
| f | 8 | 10 | 12 | 15 | ||||||
| b1 | - | 3 | - | 4 | - | 5 | - | |||
| a1-an D1-Dn | Customize by user according to user needs | |||||||||
Parameters: Table 2
| Type/Parameters | hg | D | Cmin | j | k | m | l | l1 | l2 | l3 | l4 | d | h | s |
| TL65 | 44 | 26 | 4 | 13 | 17 | 14 | 95 | 75 | 45 | 5 | 15 | 7 | 22 | 3 |
| TL95 | 70 | 46 | 5 | 25 | 30 | 26 | 125 | 105 | 65 | 10 | 20 | 9 | 35 | 4 |
| TL125 | 96 | 72 | 6 | 25 | 30 | 25 | 155 | 130 | 80 | 10 | 25 | 11 | 48 | 5 |
| TL180 | 144 | 100 | 7 | 25 | 35 | 29 | 210 | 175 | 115 | 10 | 30 | 13 | 72 | 6 |
Selecting of Drang Chains
1. The bore diameter of the inner cavity of the support plate D1 = d + ≈ 0. 1d is an integer), where d = wire and cable hydraulic and pneumatic soft
Outer diameter of pipe
2. Determine the height hg of the chain plate and the model TLXX of the drag chain according to the maximum aperture Dmax of the inner cavity of the support plate
3. Determine the bending radius of the supporting plate type according to the functional requirements of the towing chain:
(1) When the towing chain needs to bear large pipe and cable load, the high-strength support plate L type (monolithic type) should be selected
(2) Support Type II can be selected when the pipe joint size of the pipe cable is larger than the bore diameter of the inner cavity of the support plate or it must be disassembled and repaired frequently It belongs to separate type support plate
(3) Support plate type II (frame type) can be selected when there are many specifications and varieties of installation pipes and cables
4. The width B1 of the support plate is determined according to the number of installed pipes and cables, so that the drag chain width B can be obtained
5. When the towing chain needs to use steel belt protection support plate when it is used or affected by the environment, please contact this the factory proposes separately
