Small-scaled series engineering drag chains (bridge-shaped)
Key words：
Category：
Drag Chain
Product description
Type and Specification
|
TYPE |
inside diameter (height×length) |
Outside Diameter (height×length) |
Ben ding radius R |
Unsupported length (m) |
Type |
|
07.7 |
7×7 |
10×12.5 |
15 28 |
1 |
Total |
|
010.10 |
10×10 |
14×17.5 |
18 28 |
1 |
Total |
|
010.15 |
10×15 |
16×28 |
28 |
1.5 |
Total |
|
010.20 |
10×20 |
16×33 |
28 38 |
1.5 |
Total |
|
015.15 |
15×15 |
20×25 |
28 |
1.5 |
Semi-closed in side open
|
|
015.20 |
15×20 |
20×30 |
28 38 |
1.5 |
|
|
015.30 |
15×30 |
20×40 |
28 38 |
1.5 |
|
|
015.40 |
15×40 |
20×50 |
28 38 48 |
1.5 |
|
|
015.50 |
15×50 |
20×60 |
28 48 |
1.5 |
|
|
018.18 |
18×18 |
24×30 |
28 38 48 |
1.5 |
|
|
018.25 |
18×25 |
24×36 |
28 38 48 |
1.5 |
|
|
018.37 |
18×37 |
24×49 |
38 48 |
1.5 |
|
|
018.50 |
18×50 |
24×61 |
38 48 75 |
1.5 |

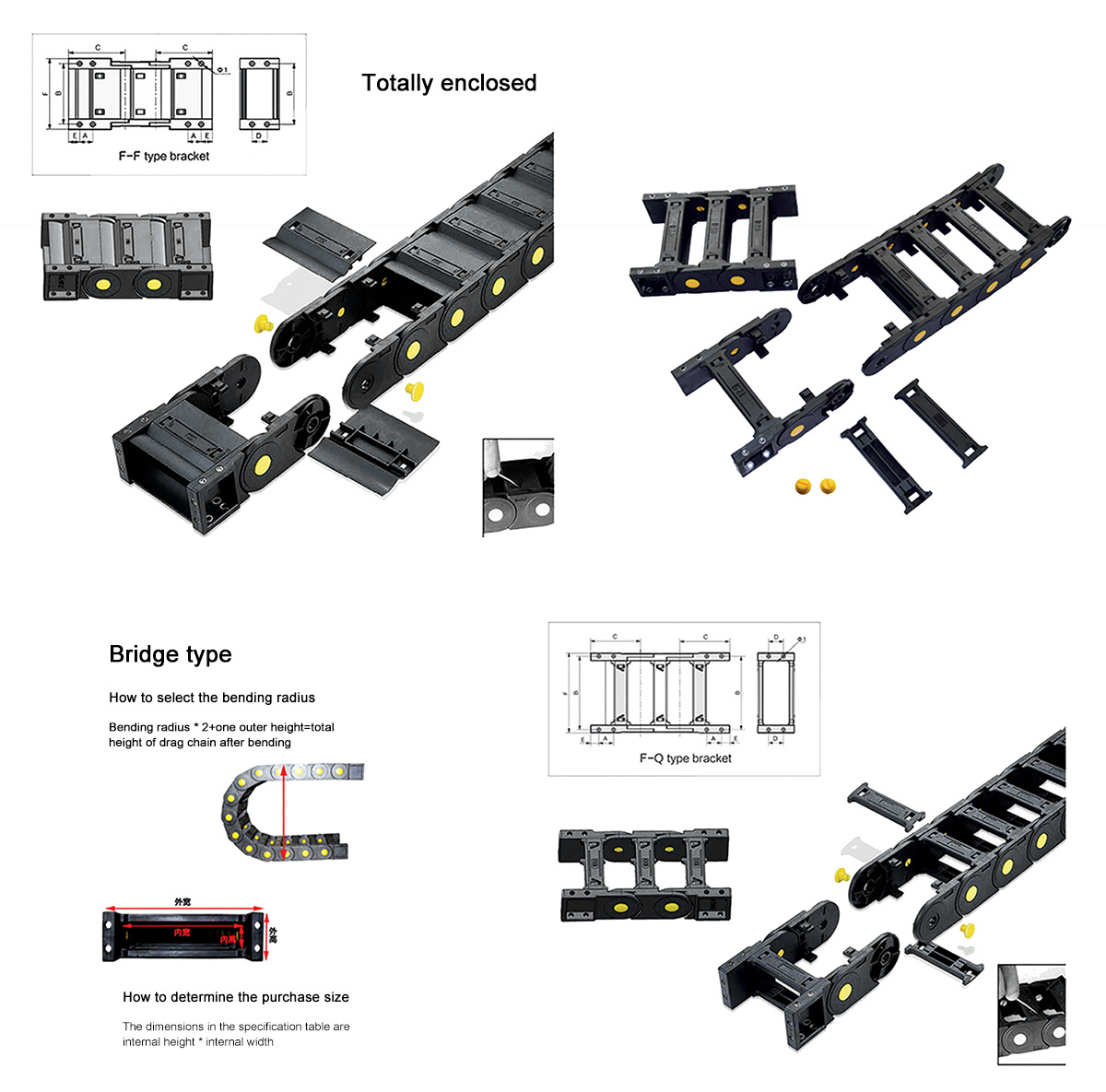

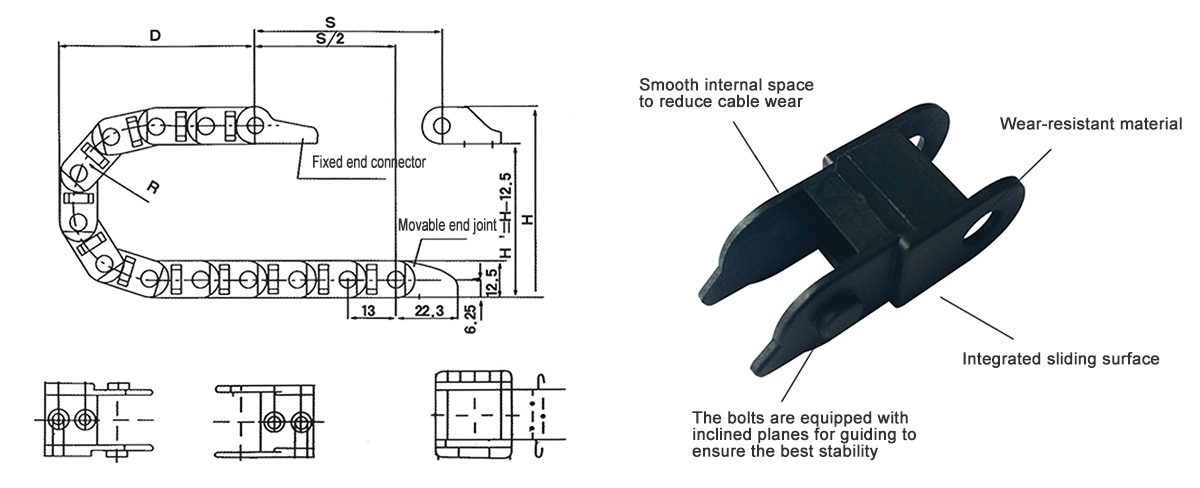

Towline selection / disassembly diagram
