Cangzhou Retai Petroleum Machinery Co., Ltd
35 series of high-speed quiet towline
Key words：
35 series of high-speed quiet towline
Category：
Drag Chain
Product description

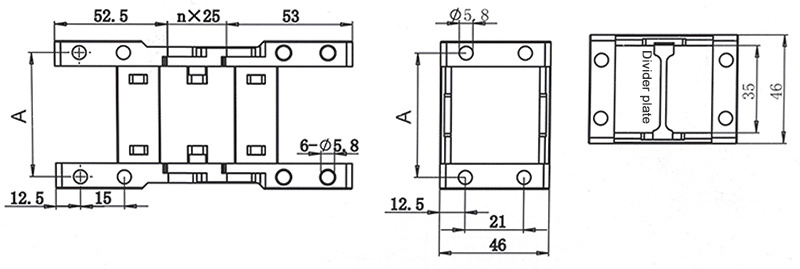

Specifications for spiral steel Tape shield
| Internal height | Inner width | External height | Outer width | Pitch | Bending radius (R) | Open with | Joint hole spacing |
| 35 | 50 | 46 | 70 | 25 | 55 75 100 150 |
Both sides can be opened | A=62 |
| 35 | 75 | 46 | 95 | A=87 | |||
| 35 | 100 | 46 | 120 | A=112 |
Related Products
Flexible Accordion Type Guide Shield
1.The folding material of the shield uses PVC or other materials according to the working conditions.
2.Under per folding support by PVC.
3.Gliding slice can help to avoid noises by high speed.
4.High frequency welding
5.Mounting panel for fixation
2.Under per folding support by PVC.
3.Gliding slice can help to avoid noises by high speed.
4.High frequency welding
5.Mounting panel for fixation
1.The folding material of the shield uses PVC or other materials according to the working conditions.
2.Under per folding support by PVC.
3.Gliding slice can help to avoid noises by high speed.
4.High frequency welding
5.Mounting panel for fixation
2.Under per folding support by PVC.
3.Gliding slice can help to avoid noises by high speed.
4.High frequency welding
5.Mounting panel for fixation
This guard shield is used in the protection of each kind of straight line guide rail, may lengthen the guide rail service life. The die nt may un der the basis the chart in dig- enously design, may tell us the straight line guide rail model to replace the design by our company.
1. Dustproof, waterproof, greaseproof emulsion-proof and chemical-proof.
2. With external nylon material and internal hard PVC as a support, the working temperature can be as high as 110°C and as low as -40°C
3. Width and length of the product is according to the customer's need. The range of the product is 120m/min.
2. With external nylon material and internal hard PVC as a support, the working temperature can be as high as 110°C and as low as -40°C
3. Width and length of the product is according to the customer's need. The range of the product is 120m/min.
