Cangzhou Retai Petroleum Machinery Co., Ltd
25 series of high-speed quiet towline
Key words：
25 series of high-speed quiet towline
Category：
Drag Chain
Product description

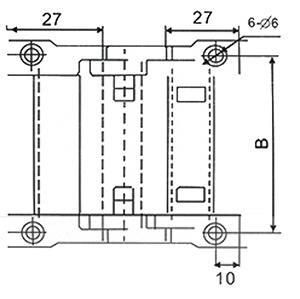

Specifications for spiral steel Tape shield
| Internal height | Inner width | External height | Outer width | Pitch | Bending radius (R) | Open with | Joint hole spacing |
| 25 | 25 | 35 | 42 | 22 | 55 75 100 |
Both sides open | B=35 |
| 25 | 38 | 35 | 55 | B=48 | |||
| 25 | 57 | 35 | 74 | B=67 | |||
| 25 | 77 | 35 | 94 | B=87 | |||
| 25 | 103 | 35 | 120 | B=104 |
