Steel Plate for Machine Tools Guide Shield

Key words：

Steel Plate for Machine Tools Guide Shield

Category：

Shield Series

Support hotline：

+86 15531769067

+86 17736962552

Inquiry
Related Products

Product description

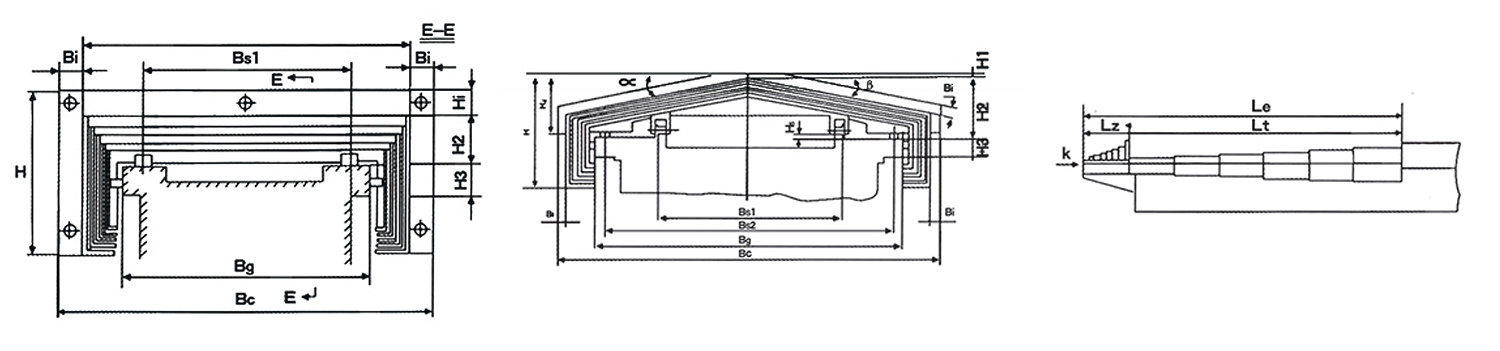

Design data for steel plate for machine tools guide shield

Technical Data

Other request
code

Description

Data mm

Ramarks



Item

Specifcation

Le

Length after drawing





1

Name of major materail

1Cr13



LZ

Length after compression





2

Thickness of the major material

Recomme nd 1.5-3mm



L1

Travel range





3

Estimated sections(n)





Bg

Width guide



Fill in according to explanation two

4

Supporting form and material

Sliding place

Opper nyio n

Trolly

Opper nyion

Be

Shield width



Bi

Width of installation



5

Pressing installation

Orders according to the chart



By user



Hi

Height of installation



H2

The upper height of the shield









H

Height of the shield



BS1

Support installation width



By user

Sign ature

Departmenl



B32

Distanee of sliding center



By user



Telephone No.



 Note:
1.The enduer select the materials and data mentioned above when place on order and we will make the design and fabrication.
2. If enduers have special reguirements, please let us know and we can achieve for them .Our company may send for visiting to survey design.
3. please fill in form per type of shield
