Cangzhou Retai Petroleum Machinery Co., Ltd
S78 Machine Anti-Vibration Mounts(Highgrade type)
Key words：
S78 Machine Anti-Vibration Mounts(Highgrade type)
Category：
Horn / Chip Conveyor
Product description

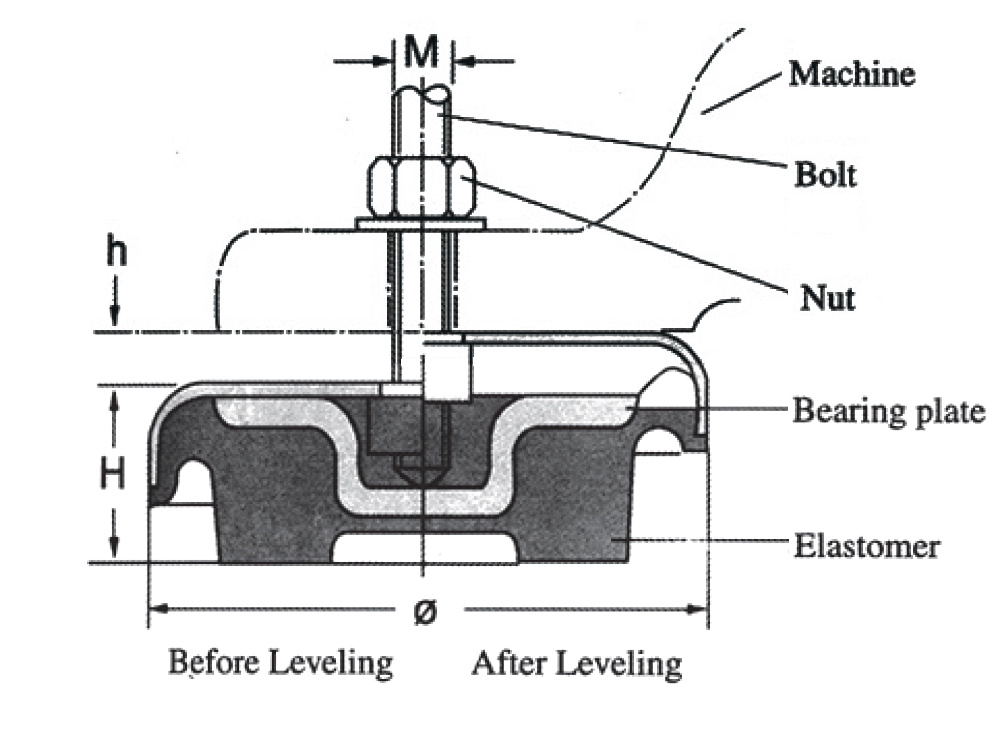

Technical parameters
| Rubber hardness index | Dimensions | Bolt | Adjust height | Static load per mount | |
| Shore(A)X3 | Φ | H | M | h | Fmax(kg) |
| 60 | 80 | 25 | M10×100 | 5 | 500 |
| 70 | 100 | 28 | M16×120 | 10 | 600 |
| 70 | 120 | 32 | M12×100 | 12 | 1000 |
| 80 | 160 | 35 | M16×120 | 12 | 2000 |
| 80 | 185 | 39 | M20×150 | 12 | 3000 |
| 80 | 210 | 54 | M20×150 | 12 | 3500 |
| 80 | 260 | 64 | M24×150 | 12 | 5000 |
| 80 | 310 | 70 | M30×250 | 12 | 7500 |
Note：
Leveling bolt length changes with require of customer.
The machine no anochor hole can use leveling spacer.
